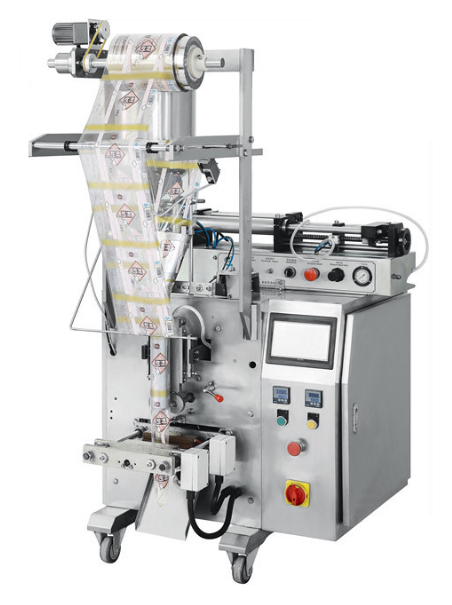

Liquid Sachet Packing Machine |
|
| |
UIPM-160Y |
|
|
 |
|
| |
 |
|
| |
 |
|
| |
1. 2 Lines Manufactured Date and Expiry Date Printer.
2. Batch cutter.
3. Touch screen with PLC control.
4. Check weighing with auto feedback weight.
5. Stainless steel material 304#.
6. Simple operation.
7. Easy maintenance.
8. Durable.
9. Efficient follow-up service.
10. Sachet Counter function(Optional).
11. Continuous Bag Form(Optional）. |
|
| |
 |
|
| |

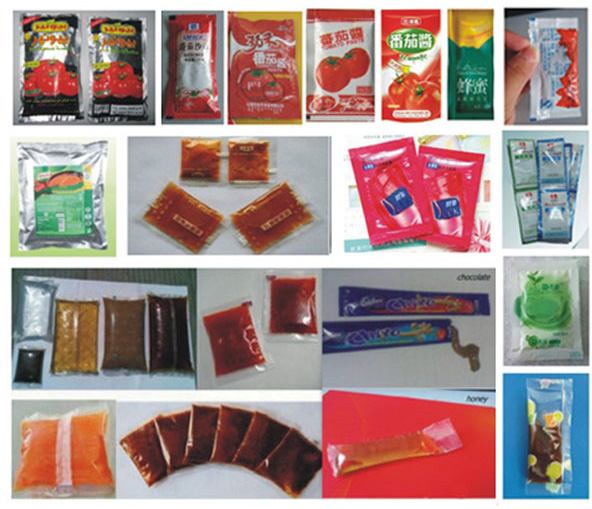

It is widely used to fill sachet laundry detergent, detergent, stuffing, pure water, sauces, reagent, pesticide emulsion, dyes,pigments and medium viscosity of the paste objects. Such as yogurt, viscous liquid, automatic liquid, fruit juice, honey, water, cheese, salad, soup, soft drink, fruit pulp, tomato paste, butter, sachet liquid, yoghurt, ketchup, sauce, jam, oil, olive oil, palm oil,vegetable oil,refined edible oil,curry paste,liquid,water pouch, milk, pure water,ketchup, Juice,salad dressing,mayonnaise,water soluble,juice, mineral water,drinking water,tomato paste,viscous caramel,henna paste cones, liquid milk,sauce, peanut butter, water pouch,mustard oil, lube oil,grease etc. |
|
| |
 |
|
| |
 |
|
| |
| Type |
UIPM-160Y |
| Film width |
Max 200mm |
Bag Length
|
30-150mm |
Bag Width
|
25-85mm |
| Packing Speed |
30-100bags/min |
Measuring Range
|
Max. 100ml |
| Air Consumption |
0.65Mpa |
| Total Power |
220V 50Hz |
Machine Size
|
（L）650×（W）700×（H）1600mm |
| Machine Weight |
750kg |
|
|
| |
|
|
| |
|
|
|
|
 |
|
