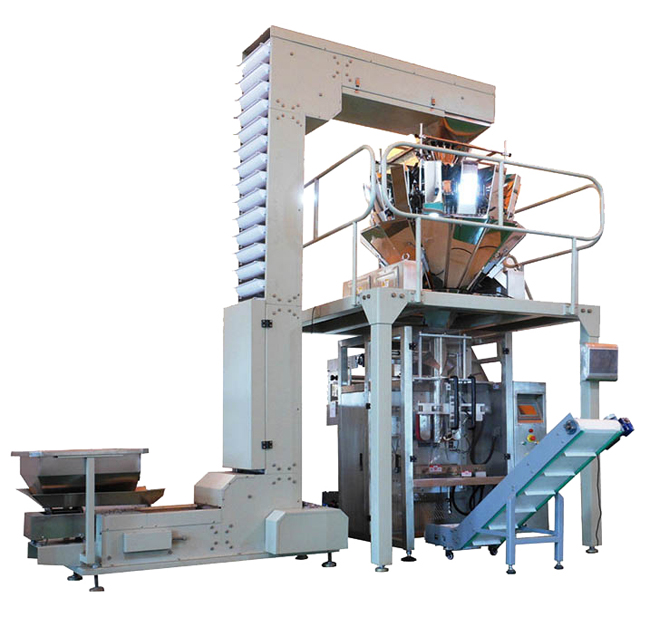

Multi Weigher Packing Machine |
|
| |
UIPM-420D/520D/620D/720D |
|
|
 |
|
| |
 |
|
| |
 |
|
| |
|
|
| |
|
|
| |
 |
|
| |
1. The machine complete the whole procedure of feeding, measuring, bagging, date printing, charging(exhausting), product out-putting automatically.
2.High precision, high efficiency without crash the machine. |
|
| |
 |
|
| |

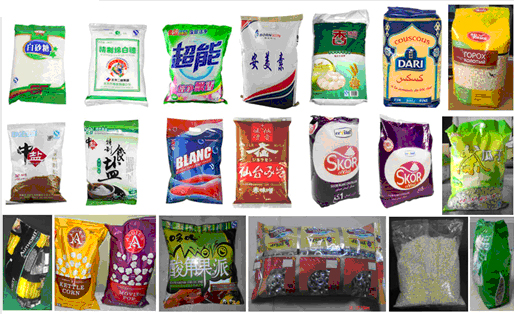

Suitable for packing fragile bulk material with irregular shape
and requiring high measuring accuracy, such as: puffed food, shrimp strip, potato chips, banana chips, apple lakes, crispy rice, biscuit, peanut, cooked seeds, sweets, sugar, salt, onion, carrot, potato, washing powder, cigerate filter etc. |
|
| |
 |
|
| |
 |
|
| |
| Type |
UIPM-520D |
Measuring Range
|
Max 3000ml |
Film width
|
Max 520mm |
Bag Length
|
80-350mm |
Bag Width
|
100-250mm |
Front Width
|
75-1300mm |
| Side Width |
40-800mm |
| Width of Side Seal |
5-10mm. |
| Packing Speed |
10-60bags/min |
| Packing Film Material |
OPP/CPP, OPP/CE, PET/PE etc. complex film. Pure PE |
| Power Supply Specifications |
220VAC/50Hz,5.5KW |
Total Weight of Machine
|
500kg |
Dimension
|
(L)1500×(W)1300×(H)1800mm |
|
|
|
|
 |
|
