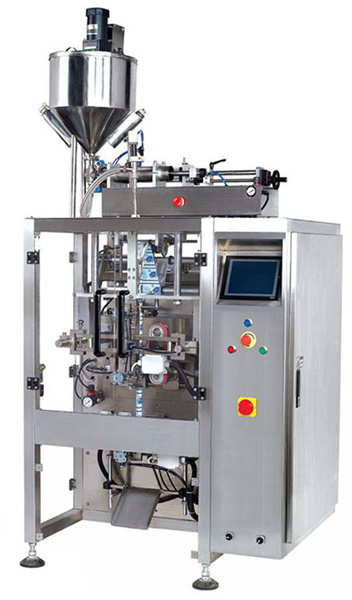

Liquid Packing machine |
|
| |
UIPM-420Y/520Y/620Y/720Y |
|
|
 |
|
| |
 |
|
| |
 |
|
| |
1. English and Chinese screen display, operation is sample
2. PLC computer system, function is more stable, adjustment any parameters not need stop machine
3. It can stock ten groups of parameters, simple to change variety.
4. Servo motor drawing film, positing accurately
5. Temperature independent control system, precision get to 1 degree.
6, Horizontal, vertical temperature control, suitable for various of mix film, PE film, packing material etc.
7. Packing type diversification, pillow sealing, standing type, bags-connected, punching etc.
8. Bag-making, sealing, packing, printed date in one operation
9. Work circumstance quiet, low noise. |
|
| |
 |
|
| |
This machine is suitable for all kinds of liquid or more sticky liquid, nonviscous liquid and viscous liquid state, such as soy sauce, soup, sauce, paste, garlic jam, tomato sauce, washing-up liquid, cheese, mayonnaise, fruit jam, bread jam, butter, edible oil, vinegar, ketchup, mini bag ketchup, mini sachet jam, mayonnaise, spaghetti sauce, garlic jam, tomato sauces, sesame oil, sesame paste, peanut paste, bread jam, bean paste, butter, jam, ghee, marmalade, honey, soybean oil, almond paste, smoothies, shampoo, shower gel, skin
lotion, tooth paste, cosmetic cream, bleach, washing up liquid, lotions, facial cream, shower gel, body wash, aloe paste, face cream, milk, water, juice, drink. etc. |
|
| |
 |
|
| |
 |
|
| |
| Type |
UIPM-520Y |
Film Width
|
Max 520mm |
Bag Length
|
Max 400mm |
Bag width
|
Max 250mm |
Packing Speed
|
5-50bags/min |
Filling Range
|
Max.1600ml |
Air Consumption
|
0.65Mpa |
Gas Consumption
|
0.4m³ /min |
| Total Power |
220V 50Hz |
| Power |
5KW |
Machine Size
|
(L)1500×(W)1300×(H)1800mm |
Machine Weight
|
750kg |
|
|
|
|
 |
|
