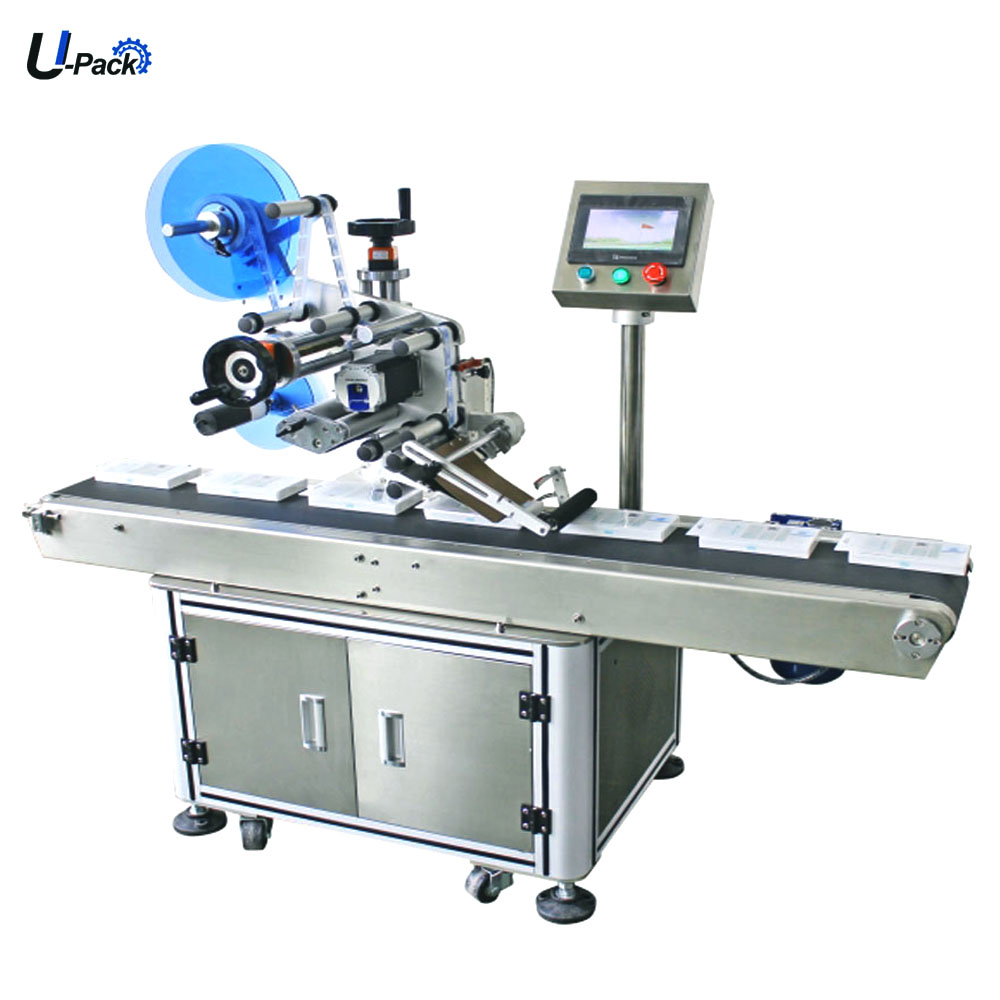

Flat Labeling Machine |
|
| |
UI-T301 |
|
|
 |
|
| |
 |
|
| |
 |
|
| |
I. Basic uses
Applicable to all kinds of things in the plane on the label or sticker film, such as books, folders, boxes, cartons bags cover standard \, the replacement of the mechanism can be applied in uneven surface labeling, widely used in large product labeling, labeling object size range of the plane.
Optional with coding machine or inkjet printer to paste head, can now print the production date, batch number and spray printing bar code and other information.
Optional inkjet printer to the conveyor belt, you can realize before labeling or labeling products on the printing of production date, batch number, bar code and other information. |
| |
II. scope of application
1. Applicable labels: self-adhesive labels, self-adhesive film, electronic regulatory code, bar code, etc..
2. Applicable products: requirements on the surface, large radian surface affixed with labels or film products.
3. Application industry: widely used in printing, stationery, food, daily chemicals, electronics, medicine and other industries.
4. Application examples: Book Graphic labeling, folder labeling, packaging, box labeling, plate labeling, etc.. |
| |
III. working process
* core working principle: the sensor detects the signal to return after products, labeling control system, signal processed by PLC, posted at the appropriate time send label attached to the product set position, products covered through the calibration device, label coated firmly, a label attached to complete action. |
| |
 |
| |
Basic function
The machine with automatic conveyor belt, can automatically transport products, can be single-machine production or connect the front line (according to the characteristics of the product itself, choose to increase the automatic feeding device, to achieve automatic feeding or material collection, saving labor). The use of rolling paste, the product delivery process by the labeling head sent out labels affixed to the product and labeling, covering the completion. Adjustable in the range of labeling, labeling head can be up and down, around, before and after, tilt adjustable, very convenient.
Optional color Ribbon coding machine, to achieve on the label printing production date and other functions, coding and labeling synchronous, saving the process. can be optional ink inkjet or laser inkjet code machine, to achieve on-product production date and other functions, coding and labeling synchronous, saving process. |
| |
Application scope
Applied to a variety of flat products such as: caps, wet towel lid, bottle caps, bottle lids, cosmetic bottle lids, lying square bottle, mobile phone shell, color box, carton, square box, plastic sheet, folder, iron box, egg box, plastic bags, cartons, tags, many kinds of flat surface proucts, plane products and so on. |
| |
|
|
|
| |
|
|
|
|
 |
|
