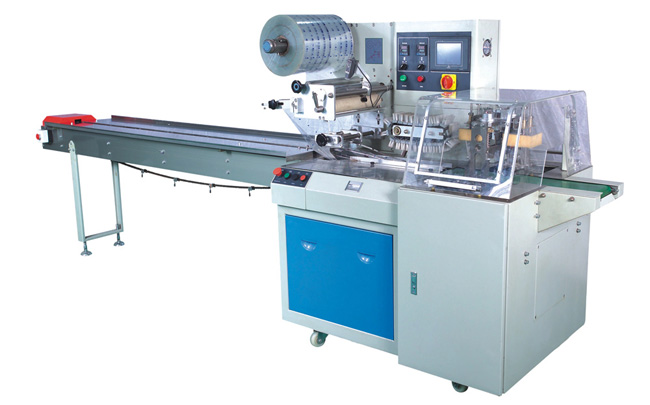

Flow Packing Machine W Series
|
|
| |
UIPM-350W/450W/600W |
|
|
 |
|
| |
 |
|
| |
 |
|
| |
1. Dual transducers controlled and bag length can be set and cut in one step.
2. Interface are easy and quick set and operated.
3. Failures can be self-diagnosised and displays clearly.
4. High sensitivity electrical eye traces and sealing position input numerically for accuracy.
5. PID control temperature independently which is more suitable for packing different materials.
6. Positioned stop function without sticking knife and wasting film.
7. Simple driving system, reliable working, convenient maintenance.
8. All control is realized through software, easy for function adjusting and technical upgrading.
9. Recoprocating type sealing device, firmer sealing, no wasting in mould sealing cutter.
10. Terminal sealing device, more beautiful bag shap, improving products level. |
|
| |
 |
|
| |

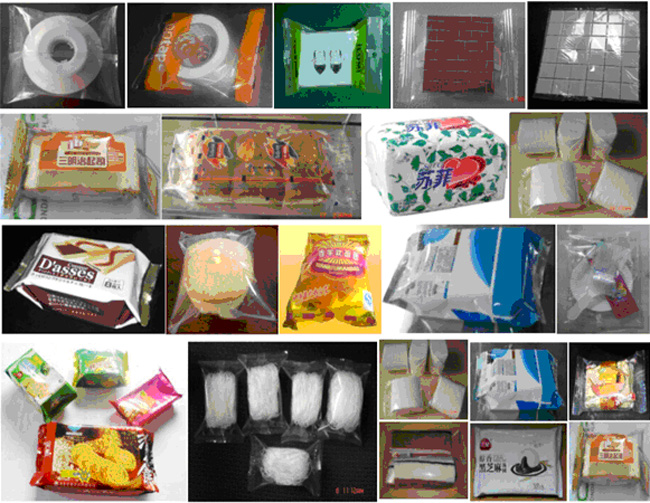

Suitable for packaging reqular objects like biscuits, pies, bread, instant noodles, drugs, daily appliances, plates, towel,disk, plate, sanitary napkins, baby wipes, wafer biscuits, tennis ball, gloves, disposable slippers, biscuit pack, etc with gusset packing. |
|
| |
 |
|
| |
 |
|
| |
| Type |
UIPM-350W |
UIPM-450W |
UIPM-600W |
Film Width
|
Max.350mm |
Max. 450mm |
Max.600mm |
Bag Length
|
110-330mm |
120-450mm |
120-550mm |
Bag Width
|
30-130mm |
50-160mm |
50-200mm |
Product Height
|
10-60mm |
10-80mm |
10-120mm |
Film Roll Diameter
|
Max.320mm |
Max. 320mm |
Max. 320mm |
Packing Rate
|
30-120bags/min |
20-80bags/min |
20-80bags/min |
| Power |
220V, 50/60Hz , 2.4KW |
220V, 50/60Hz , 3.2KW |
220V, 50/60Hz , 3.6KW |
Machine Size
|
(L)3670×(W)820×(H)1410mm |
(L)4380×(W)870×(H)500mm |
(L)4380×(W)970×(H)1500mm |
Machine Weight
|
800kg |
960kg |
1160kg |
| Remarks |
Reciprocating system with gusset device |
|
|
|
|
 |
|
