  Home > Products > Flow Packing Machine X Series


  Flow Packing Machine X Series

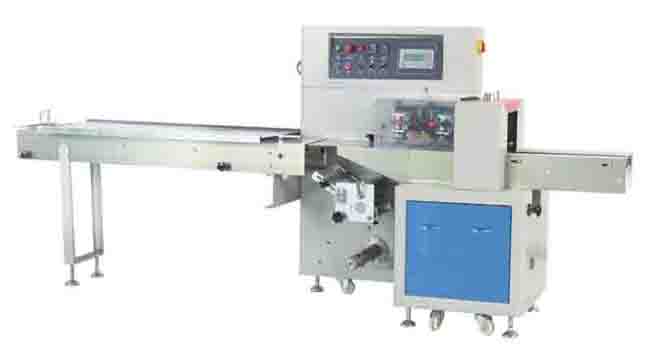

  UIPM-250X/350X




1. Dual transducers controlled and bag length can be set and cut in one step.
2. Interface are easy and quick set and operated.
3. Failures can be self-diagnosised and displays clearly.
4. Electricity eye traces and sealing position is input numerically.
5. PID control temperature independently which is more suitable for packing different materials.
6. Positioned stop function without sticking knife and wasting film.
7. Simple driving system, reliable working, convenient maintenance.
8. All control is realized through software, easy for function adjusting and technical upgrading.





1.Packaging soft, strip and unorganized objects like towels, tissues, noodles, egg rolls, sausages, fish, ice-lollies, soft candies, fresh fruits, wet tissues, wipes, frozen fish, frozen meat,etc.
2.Incense, candles, disposable chopstick, disposable cutlery, tooth sets, spaghetti, plastic spoon, toothbrush, straw, collodion mop, mop head,candles.
3.Industry parts: sliding rail, metal tube, plastic tube, plug board, sponge, ceramic, mosaic, hardware fitting, hardware acceseries, stainless steel tube, SS tube, 6m length ss tube, frozen food, popsicle, ice cream, cotton candies, long cotton candies, radish strip, meat bunch, sticky food, stickness thing, paste food.






Type UIPM-250X UIPM-350X
Film Width
Max.250mm Max. 350mm
Bag Length
65-190 or 120-280mm 65-190 or 120-280mm
Bag Width
30-110mm 50-160mm
Product Height
Max.40mm Max.40mm
Film Roll Diameter
Max.320mm Max. 320mm
Packing Rate
40-230bags/min 40-230bags/min
Power 220V,50/60Hz,2.4KW 220V,50/60Hz,2.8KW
Machine Size
(L)3920×(W)670×(H)1320mm (L)4020×(W)720×(H)1320mm
Machine Weight
800kg 900kg
